Steel networks and risers
We supply and install black steel seamless Schedule 40 pipe, Ukrainian or Chinese, for risers and branch networks.
Two ways to join
- Welded
- Grooved
Jotun paint system
- Red finish coat
- Red coat
- Primer
- Seamless steel pipe
Buried HDPE mains
For runs under the ground, such as the main from the pump room to the buildings and hydrants, we supply and install HDPE pipe.

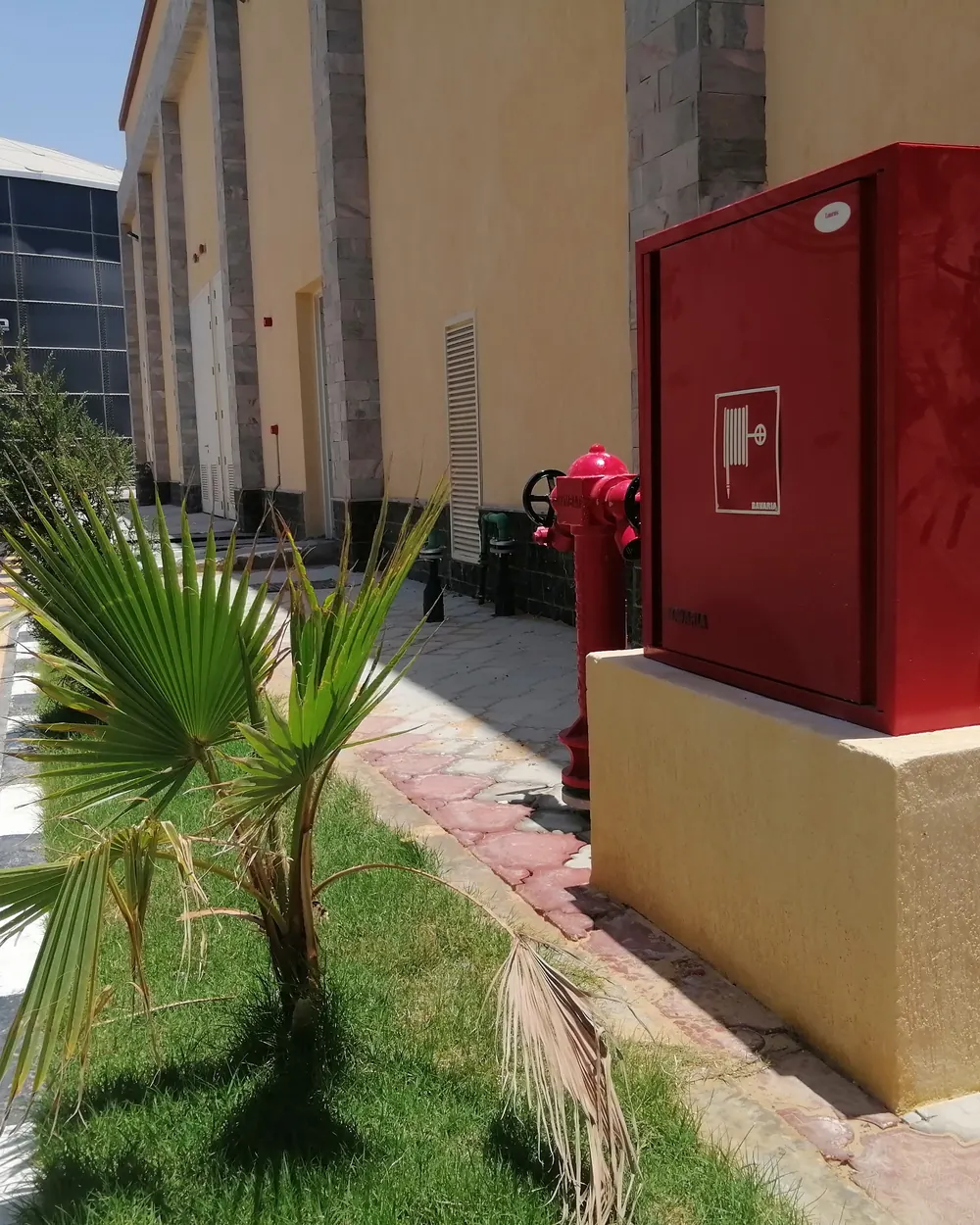

Fire cabinets made by SESCO
Our own single- and double-door cabinets: 1.2 mm steel, red electrostatic paint, quality fittings and an acrylic label. For administration buildings and areas where steel is not suitable, we make the same cabinets in stainless steel.
- 2.5″ hose rack with UL listed hose (NAFFCO, SFFECO, BAVARIA or Torrent)
- 1″ hose reel with LPCB approval
Material schedule
| Item | Specification |
|---|---|
| Pipe | Black steel seamless, Schedule 40 |
| Joining | Welded or grooved |
| Paint system | Jotun: primer and two red coats |
| Buried pipe | HDPE, 16 to 25 bar |
| Cabinet body | 1.2 mm steel, red electrostatic paint, or stainless steel |
| Single-door cabinet | 80 × 80 × 30 |
| Double-door cabinet | 80 × 160 × 30 |
| Hose approvals | UL (2.5″ hose), LPCB (1″ reel) |
Have drawings for your site?
Send them to us and our engineers will quote the network, the risers and the cabinets you need.
