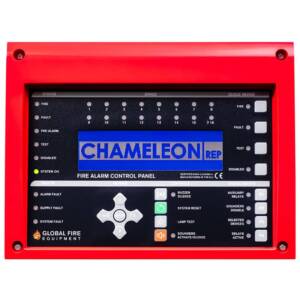

CHAMELEON REP
CHAMELEON MINI REP is the most effective solution when you need full control of a networked system.
- Ingress protection / material
- IP30 / ABS
- Primary supply
- 28.5V DC nominal (Max.)
- Operating / storage temperature
- -10ºC to 50ºC
- Supplied and installed by SESCO engineers
- Commissioning, training and maintenance available
Overview
CHAMELEON MINI REP is the most effective solution when you need full control of a networked system.
In a Chameleon Network, the CHAMELEON REPEATER is used as a ‘System Repeater’. It works as an addressed networked panel (without loops) and can process and register (event log) all ‘system info’. For connection diagrams and project commissioning, please refer to the Chameleon Network manual, as well as the manual of the communication interface being used.
The CHAMELEON MINI REP does not require batteries. It should be connected to an external power supply. The Cause and Effect programming of the whole system, as well as all customer specific configuration, can be downloaded or uploaded using the CHAMELEON CONNECTOR software and later broadcast to other networked CHAMELEON panels.
GFE CHAMELEON REP
Technical specifications
| Primary supply | 28.5V DC nominal (Max.) |
|---|---|
| Quiescent current | 65 mA |
| Operating / storage temperature | -10ºC to 50ºC |
| Humidity | Max. 85% RH Non-Condensing |
| Ingress protection / material | IP30 / ABS |
| Dimensions | 256 (L) x 194 (H) x 75 (W) mm |
| Weight | 760 g |
| Colour | White (RAL 9003), Red (RAL 3001) or Anthracite (RAL 7016) |
