GFE – ORION MINI

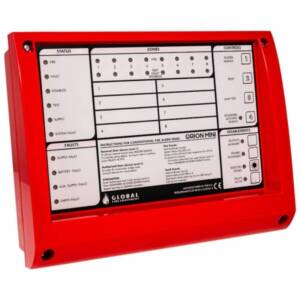

The ORION MINI one and two zones conventional control panel offers a creatively designed and aesthetically pleasing solution for smaller cost-conscious projects demanding simplicity of operation. The programmable features included in this panel include programmable time delay and day/night mode. Operation is extremely intuitive, offering simple control and one-button disablement facilities, as well as the one-man test mode, which provides simple and efficient testing of the system.

TECHNICAL SPECIFICATIONS

PRIMARY SUPPLY VOLTAGE – IN 230 +10% -15% V AC
PRIMARY SUPPLY VOLTAGE/ CURRENT – OUT 0.5 A @ 28.5 V DC nominal (max.)
SECONDARY SUPPLY VOLTAGE 21.0 min. – 27.2 max.V DC – BAT charger o/p 28 V DC
INTERNAL BATTERY CAPACITY – MAXIMUM 2 x 12 V x 1.2 Ah Sealed VRLA Lead Acid Batteries
MAINS FUSE/ BATTERY FUSE 1 A -250 V Slow Blow – 20 mm/ 1.0 Amp – Resettable
ZONE CURRENT – QUIESCENT/ ALARM 4 mA / 65 mA
MAX. CABLE RESISTANCE/ CAPACITANCE 40 Ohms / 0.470 uF
END OF LINE MONITORING Active EOL – 10uF/50V Bipolar Electrolytic Aluminium Capacitor
BS5839 DETECTOR REMOVAL COMPLIANT YES provided diodes are fitted to detector base
DEVICES PER ZONE 32 Maximum – EN 54-2
ALARM RESISTANCE VALUE 270 – 1000 Ohms
SOUNDER CIRCUIT SPECIFICATION 1 output w/ 300 mA max. current drive – fully monitored
ALARM VOLTAGE/ END OF LINE RESISTOR 27.5 V DC Nominal / 10 K Ohms – 1/4 Watt E.O.L.
OPERATING TEMPERATURE / MAX. HUMIDITY -10ºC to 50ºC / 95% RH Non-Condensing
WEIGHT 1.1 Kg – 2.3 Kg (inc. 2 x 1.2 AH 12 V bat.)
DIMENSIONS 194 (L) x 256 (W) x 86 (H) mm
COLOUR White or Red
